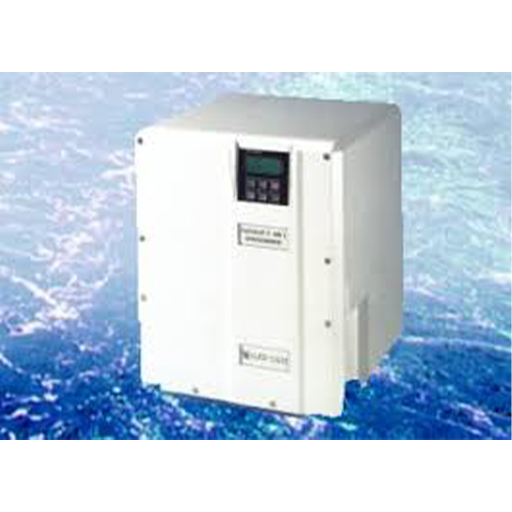

Sperry Marine NAVIGAT X MK 1
The NAVIGAT X MK 1 Gyro Compass is type approved in accordance with the International Maritime Organisation (IMO) standards. In addition the system is approved to the High-Speed Craft Code and as a rate-of-turn sensor with an accuracy level that meets IMO-Standards.
The NAVIGAT X MK 1 provides high performance and reliability with sophisticated gyro compass technology. In addition, to fulfil the main function as a heading sensor, the NAVIGAT X MK 1 Gyro Compass offers many features that provide additional value and make day-to-day work easier.
Delivery - when you want and anywhere
A huge selection of best products
| PERFORMANCE | |
|---|---|
| Linear mean settle | |
| Point error | < 0.1° secant latitude |
| Static error | < 0.1° secant latitude |
| Dynamic error | < 0.4° secant latitude (in sea state conditions) |
| FREEDOM OF ROLL AND PITCH | |
|---|---|
| NAVIGAT X MK 1 Mod 7 | ±90° |
| NAVIGAT X MK 1 Mod 10 | ±40° |
| POWER REQUIREMENTS |
|---|
| 24 VDC (18 V to 36 V) and / or |
| 115/230 VAC ±10% |
| 50 Hz / 60 Hz |
| The single unit gyrocompass includes automatic switchover to 24 V emergency power supply in accordance with GMDSS Rules for INMARSAT/SES Terminals. |
| OPERATIONAL DATA | |
|---|---|
| Ambient temperature range | operation -10°C to +55°C storage -25°C to +70°C (without supporting fluid) |
| Settling time | < 3 hours (0.7°) |
| Gyrocompass follow-up rate | 100°/sec. |
| Heading display | digital with 4 digits |
| Power failure alarm |
visible and audible and potential-free contact,
max. 30 VDC / 1.0A, max. 125 VAC / 0.5A
max. current 2 A,max. voltage 250 V
|
| Mean time between failure | 40,000 hours (MTBF) |
| North speed error correction | static, input IEC 61162-1, or manual |
| Built-in test equipment | standard |
| POWER CONSUMPTION | ||
|---|---|---|
| Start-up | 80 W | 125 VA |
| Operation | 45 W | 75 VA |
| Each analogue repeater | 7 W | 7 VA |
| Each universal digital repeater | 5 W | 5 VA |
| PROTECTION GRADE | |
|---|---|
| Gyrocompass | IP 23 in accordance with IEC / EN 60529 |
| MAGNETIC CLEARANCE TO | |
|---|---|
| Standard magnetic compass | 0.6 m |
| Steering magnetic compass | 0.4 m |
| REDUCTED MAGNETIC CLEARANCE TO | |
|---|---|
| Standard magnetic compass | 0.3 m |
| Steering magnetic compass | 0.3 m |
| DIMENSIONS | |
|---|---|
| Width | 404 mm |
| Height | 520 mm |
| Depth | 420 mm |
| WEIGHT | |
|---|---|
| NAVIGAT X MK 1 Mod 10 | 25 kg |
| NAVIGAT X MK 1 Mod 7 | 28 kg |
