Features Automatic Fixed or Automatic Portable ELT 3 frequency, 121.5/243/406MHz 6 year battery life Short-circuit protection Optional programming dongle, perfect for fleet operators Weight: 1,180g to 1,290g according to the variants ELT dimensions 172 x 82 x 82mm Optional ARINC Nav interface: CS144

Kannad 406 AF-Compact ELT

Features Compact size 48 hour certified transmission on 406MHz (distress) and 121.5MHz (homing) Low cost two wire compatibility when installed with optional control panel EASA minor change approval available for most common aircraft Optional programming dongle, perfect for fleet operators Quick and easy retrofit with universal mounting bracket Built-in alarm/buzzer Compact ELT pack includes: Kannad 406 AF Compact ELT Universal Mounting Bracket + strap RC200 Remote Control Switch DIN-12 ELT Connector and Sub D Connector

Kannad 406 Survival ELT

Features Water Switch Sensor allowing automatic activation, via contact with water (optional on AS-TNC variant) Audible and visual activation indicators (buzzer and LED) Integrated self-test facility with visual indicator for resultsThree frequency transmitter (121.5 / 243 / 406MHz) Easy programming 6 year battery life-time Installation in the cabin or stowed inside the life raft Dimensions & Weight Overall dimensions (antenna deployed): 590 mm x 160 mm x 160 mm Overall dimensions (packed): 290 mm x 165 mm x 165 mm Overall dimensions (on mounting bracket): 300 mm x 162 mm x 160 mm Weight (including battery, auxiliary antenna and flotation collar): typical 1180g / max 1250g

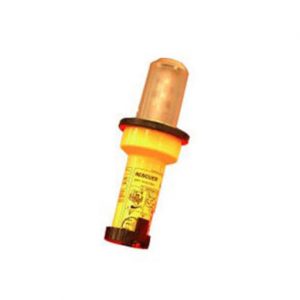

Kannad 9 GHz Rescuer SART GMDSS

KANNAD has completed its world renowned range of Kannad 406 Epirbs with the RESCUER Sart in order to fulfil GMDSS carriage requirements (Global Maritime Distress and safety System). The RESCUER Sart (Search and Rescue Radar Transponder) is a very simple 9 GHz receiver/transmitter which provides...

Kannad Aircraft Antennas

A choice of 406/121.5MHz antennas is available to suit any sub-sonic aircraft. For most GA applications, the AV200 whip antenna is the logical choice, combining high performance with entry-level pricing. Most helicopters will be better suited to the AV300 rod antenna, as will aircraft with a VNE in excess of 250 knots. For all aircraft with a VNE in excess of 350 knots we recommend the ANT500 blade antenna. The Kannad Integra ELT has a built-in 406MHz antenna. Provided the unit is mounted in a position where it can see at least a part of the sky, either in a glassfibre fuselage or under a canopy, an external 406MHz antenna should not be needed, though national regulations may still require one to be fitted. Check with your installer for the rules in your country.

Kannad AIS AtoN (Aids to Navigation)

Kanaton 1 - AIS transmitter Kanaton 3 - AIS transceiver Can be linked with additional sensors Remote control and configuration from shore station (Kanaton 3 only) Can transmit the following AIS data: Message 21 Identification of the aid to navigation (name, type, position etc) Message 8 Meteorological and hydrological data Message 6 Telemonitoring of AtoN Message 12 Relaying of safety messages transmitted by a SART (Kanaton 3 only) Message 14 Transmission of safety messages (Kanaton 3 only)

Kannad Ameri-Fit Pack

Features Integra AF or AF-H ELT RC103 Remote Control Panel Adapter cable DIN12/RJ11 RJ11 coupler Universal Mounting Bracket

Kannad Aviation Control Panels

Kannad Aviation Control Panels Unless your ELT is mounted in a position where the switch and light can be seen and operated from the pilot’s normal seated position, a remote control panel is required to be installed in the instrument panels. All Kannad Aviation remote control panels have a switch with three positions. Armed (ready for use when activated by the automatic switch), ON (activates immediately), and Test/RESET.

Kannad Integra 406 AF-H Helicopter ELT

Features Integrated internal 406MHz back-up antenna Unique built-in GPS Two wire installation kit available with the Retro-fit pack Minor change approval available for most common aircraft Operates at temperatures as low as -20°C -40°C version also available Optional programming dongle, perfect for fleet operators Quick and easy retrofit with universal mounting bracket Built-in alarm/buzzer Completely self-powered by the ELT battery (replacement every 6 years)
